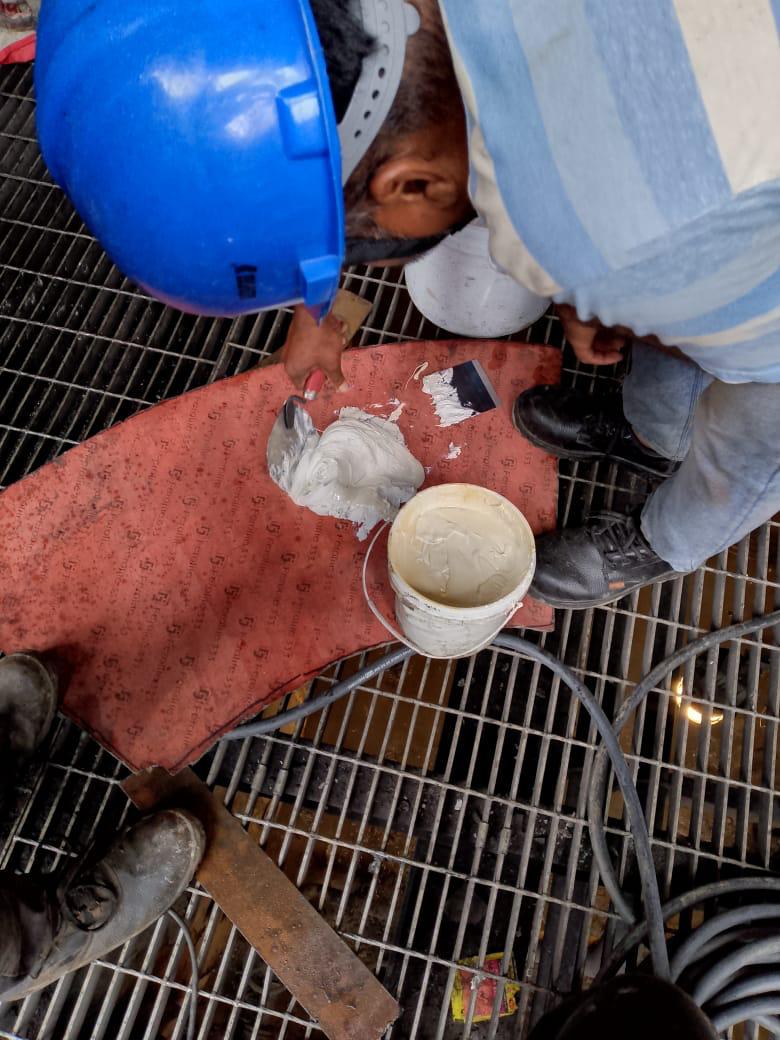

Ceramic Putty used to repair and recondition the ceramic lined items, cast basalt lined items or any other component which is subjected to wear and erosion. Ceramic Putty is formulated to be a dense mix that can be applied easily to overhead and vertical surfaces without running or sagging. Add the hardener to the resin and mix thoroughly on a mixing board using a spatula. Do not mix in the containers.
| SR. No. | Specification Properties | Value |
|---|---|---|
| 1 | Alumina Content Al2O3 (%) | 90 |
| 2 | Bulk Density (gm/cc) | Min. 2.8 |
| 3 | Water Absorption (%) | 1 – 2 |
| 4 | Temperature Resistance (°C) | 200 |
| 5 | Coating Thickness (MM) | 5 - 30 |
Carbide Putty is a two component solvent free epoxy metal repair compound containing Carbide beads to repair and protect equipment exposed to extreme wear environments from fine particles & wet slurries.
Mixing can be either partial or full units. If mixing the full unit, then ensure as much as possible of both the base and activator is dispensed from the containers onto a clean plastic mixing surface. Mix using the spatula provided until a uniform material free from any streakiness due to unmixed product, while also ensuring there is no unmixed material left on the spatula or the mixing surface.
Suitable for repairing and protecting surfaces suffering from severe erosion and fine particle wear such as:
| Slurry Pumps | Pipe elbows |
|---|---|
| De watering pumps | Fan blades and housings |
| Bins and Hoppers | Wear plates |
| Chutes | Pipes |
| Screw conveyors | Bends |
| Coal Burner | Coal Mill |
